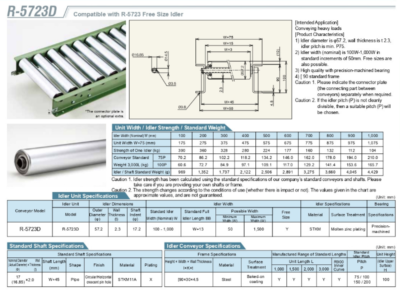

For more information about the product you can click here to open catalog

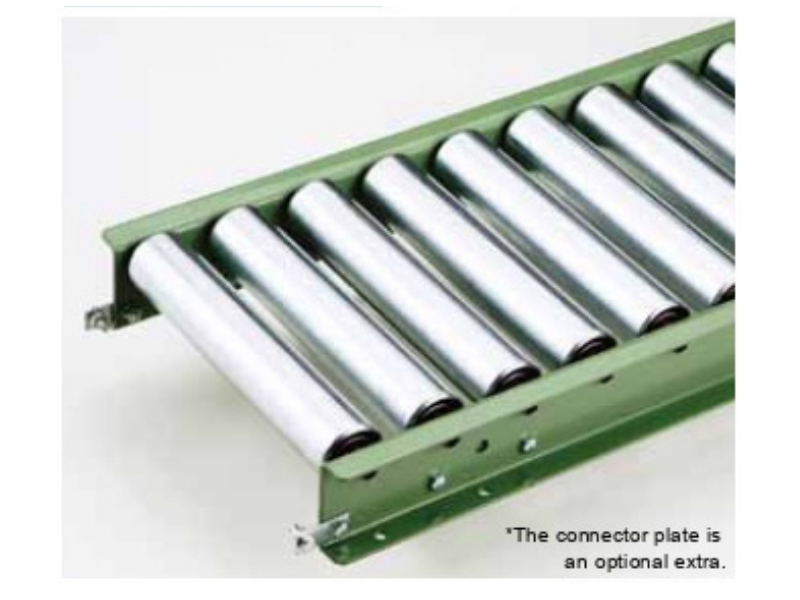

Steel Idler Conveyor R-5723D
The gravity conveyor model is conveying heavy loads
- Idler diameter is φ 57.2, wall thickness is t2.3, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Steel Idler Conveyor R-2812P
The gravity conveyor model is conveying light loads, ideal for conveying small items
- Idler diameter is φ 28.6, idler pitch is min P30.
- Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
- Pressed bearing, low cost, best-selling φ 28 product
- [ 60 standard frame
Steel Idler Conveyor R-6023P
The gravity conveyor model is conveying medium loads
- Idler diameter is φ 60.5, wall thickness is t2.3, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm.
- Pressed bearing, low cost
- [ 90 standard frame
Steel Idler Conveyor R-7642
The gravity conveyor model is conveying heavy loads
- Idler diameter is φ 76.3, wall thickness is t4.2, idler pitch is min P100.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Stainless Steel Idler Conveyor RS-3810-8
The gravity conveyor model is conveying very light loads, ideal for conveying small items
- Idler diameter is φ 38.1, idler pitch is min P50.
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
Aluminum Idler Conveyor RA-3816
The gravity conveyor model is conveying light loads
- Idler diameter is φ 38.1, idler pitch is min P50. It is the most versatile out of our aluminum idler models
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
- Pressed bearing, low cost
Aluminum Idler Conveyor RA-4515
The gravity conveyor model is conveying light loads
- Idler diameter is φ 45.0, idler pitch is min P50.
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
- Pressed bearing, low cost
Resin Idler Conveyor JR-3018B
The gravity conveyor model is conveying very light loads, ideal for conveying small items
- Idler diameter is φ 30.5, idler pitch is min P40.
- Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
- Aluminum frame
Aluminum Idler Conveyor RA-2816
The gravity conveyor model is conveying light loads, ideal for conveying small items
- Idler diameter is φ 28.6, idler pitch is min P40.
- Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
