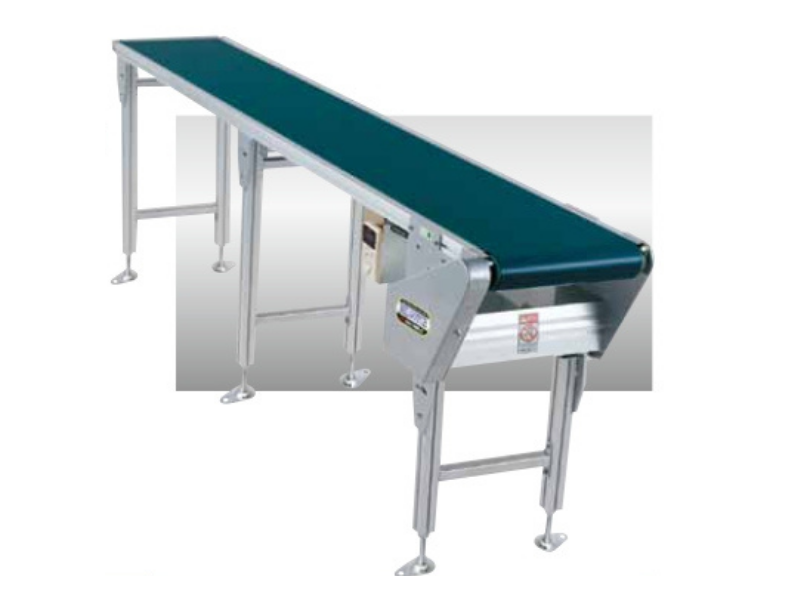

Belgotch Standard Model Type34-S2

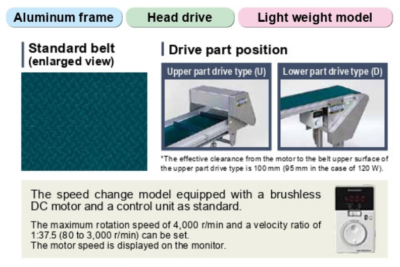

The Belgotch (Belt Conveyor) has rollers that do not roll on the surface of the belt, and the conveyor is suitable for carrying items that get dirty easily. The upper part drive type should be used when there is a small amount of water or oil.
- Aluminum frame
- Head drive
- Light weight model
Description
For more information about the product you can click here to open catalog
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
