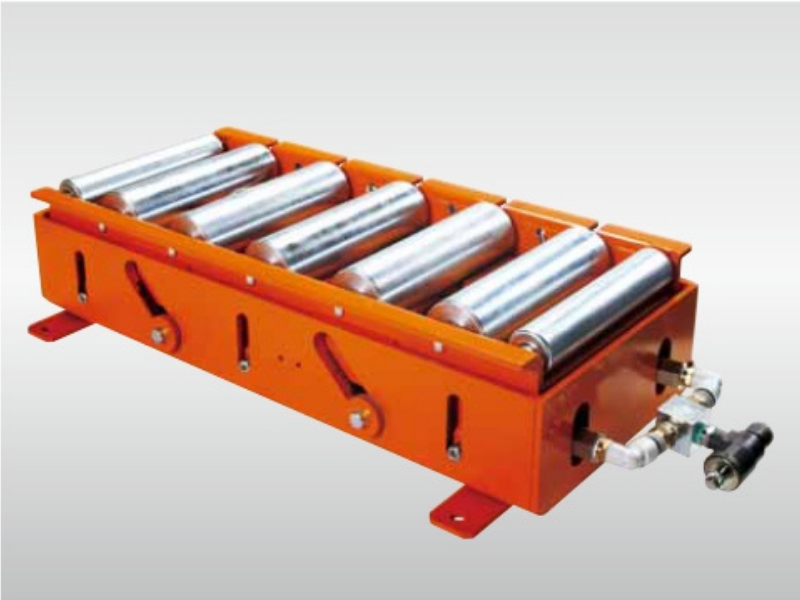

Air Lift With Rollers ALR-PRL-57D
The Air lift (Ballon Lifter) has a motor roller drive type having a parallel link mechanism built in. It is compact and a low floor type, and optimum for changing directions in a small space. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 45 mm
- For medium loads
- Equipped with lowering speed adjustment function
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
