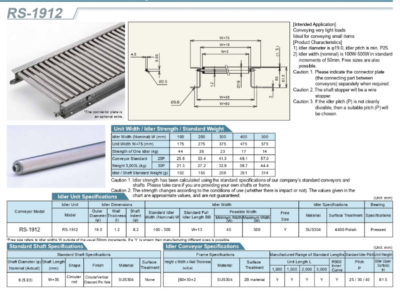

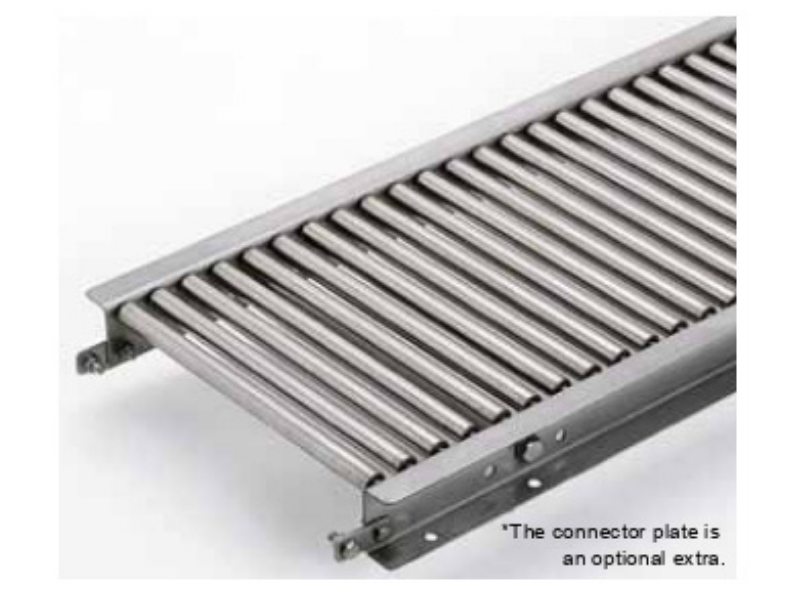

Stainless Steel Idler Conveyor RS-1912
The gravity conveyor model is conveying very light loads, ideal for conveying small items
- Idler diameter is φ 19.0, idler pitch is min P25.
- Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Steel Idler Conveyor R-5714P
The gravity conveyor model is conveying medium loads
- Idler diameter is φ 57.2, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm.
- Pressed bearing, low cost, best-selling φ 57 product
- [ 90 standard frame
Steel Idler Conveyor R-5721D
The gravity conveyor model is conveying light to medium loads
- Idler diameter is φ 57.2, wall thickness is t2.1, improved impact resistance, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Steel Idler Conveyor R-6038SB
The gravity conveyor model is conveying heavy loads
- We have changed the precision-machined bearing of the previous model R-6038 to a bearing that meet standards, improving the quality of the idler.
- Idler diameter is φ 60.5, wall thickness is t3.8, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- [ 90 standard frame
Stainless Steel Idler Conveyor RS-3810-12
The gravity conveyor model is conveying light loads, ideal for conveying small items
- Idler diameter is φ 38.1, idler pitch is min P50.
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
Resin Idler Conveyor JR-3823
The gravity conveyor model is conveying very light loads
- Idler diameter is φ 38.0, idler pitch is min P50.
- Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
- Aluminum frame
Resin Idler Conveyor JR-5028
The gravity conveyor model is conveying very light loads
- Idler diameter is φ 50.3, idler pitch is min P75.
- Idler width(nominal) is 100W-600W in standard increments of 50mm. Free sizes are also possible.
- Aluminum frame
Tapered Idler Conveyor R-TC700
The gravity conveyor model is conveying light to medium loads
- For use with inner R700(mm), with an angle of 90°
- Idler width(nominal) is 200W-600W in standard increments of 50mm. Free sizes are also possible.
