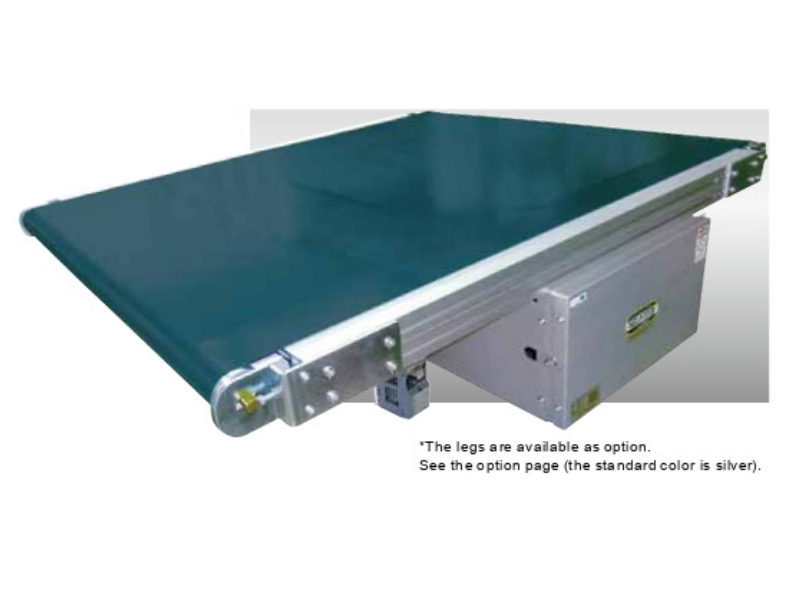

Belgotch Meander-less Model Type90-G1
The Belgotch (Belt Conveyor) has a carrier table system, which realizes stable conveyance of unstable heavy things, is adopted.
- Aluminum frame
- Center drive
- Medium weight model
Description
Shipping & Delivery


SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch Tilted Model Type34-T1
The Belgotch (Belt Conveyor) model smoothly carries things from the tilted surface to the horizontal surface without making a connection. A vertical groove belt for slopes is used as standard, and the drive part is also movable. Therefore, the conveyor can be installed to slopes or horizontal places depending on the application. The angle can also be adjusted easily based on the layout.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Knife Edge Model Type34-K1
The 3-mm end R has a sharp edge, and the Belgotch (Belt Conveyor) model allows smooth transfer of small things that are about 20 mm. The standard specification has a knife edge on one side.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Joint Model Type34-JG1
The meander-less Belgotch (Belt Conveyor) model of the joint model TYPE 34-J1. It supports severe conditions such as forward and reverse operations and installation to places where it is difficult to perform maintenance inspection.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Model Type34-G2
The Belgotch (Belt Conveyor) has rollers that do not roll on the surface of the belt, and the conveyor is suitable for carrying items that get dirty easily. It also uses a belt with a guide and is suitable for conditions when the belt adjustment is difficult.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Belt Cleat Model Type34-D2
A belt cleat and a guide (with a height of 30 mm) are used as standard. The Belgotch (Belt Conveyor) can be used for inclined conveyance of bulk solids and things with an unstable shape or for pitch feeding at a horizontal surface.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG2
The loading side of the conveyor is R8, and the Belgotch (Belt Conveyor) model allows smooth transfer. Stable conveyance with less deviation is realized by adopting a meander-less belt for the roller edge. Use the conveyor for connection to a large conveyor. (The roller edge part is on one side only).
- Aluminum frame
- Head drive
- Light weight model
Belgotch Standard Model Type90-S1
The Belgotch (Belt Conveyor) has a carrier table system, which realizes stable conveyance of unstable heavy things, is adopted.
- Aluminum frame
- Center drive
- Medium weight model
Belgotch Standard Strong Type Model Type60-SZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
