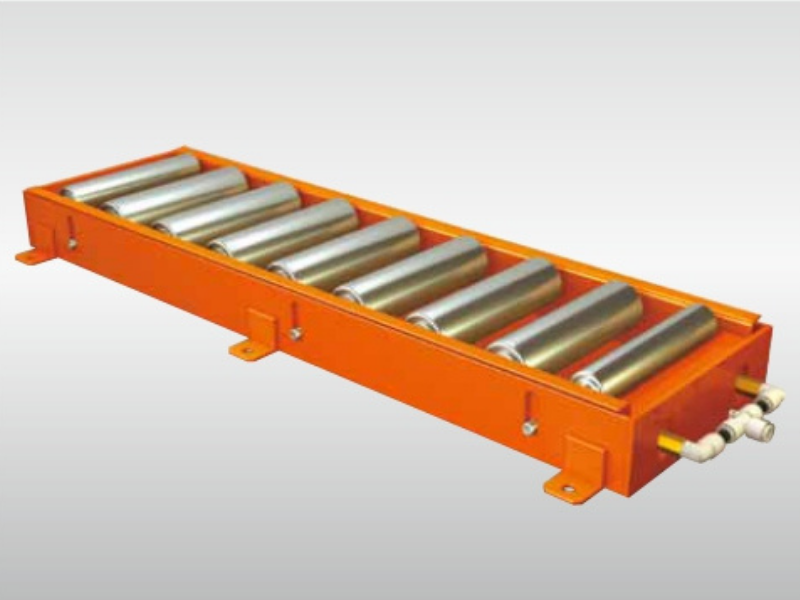

Air Lift With Rollers ALR-PR-57W

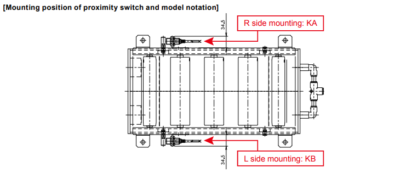

Mounting the Air Lift (Ballon Lifter) is easy. It is stronger and stabler because two hoses are used. One lift is sufficient for small items. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads
Description
Related products
Standard Air Lift ALB-MB-N
Air Lift With Parallel Link ALB-TBL-N
The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. Compact design with a low floor (90 mm). The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For light loads
- Equipped with lowering speed adjustment function
Air Lift With Parallel Link ALB-TBL-WN
The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. The hose can be replaced without disassembling the lift. The floor is lower and the movable load is larger compared with cylinders. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For heavy loads
- Equipped with lowering speed adjustment function
Air Lift With Rollers ALR-PR-57M
Air Lift With Rollers ALR-PR-57D
The upper frame Air Lift (Ballon Lifter) attached with rollers that have a built-in motor moves up and down. The machine height is low (90 mm), and it is optimum for low floor type direction changing machines. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 30 mm
- For medium loads
- Equipped with lowering speed adjustment function
Air Lift With Wheels ALW-36
Electric Air Lift ADL
