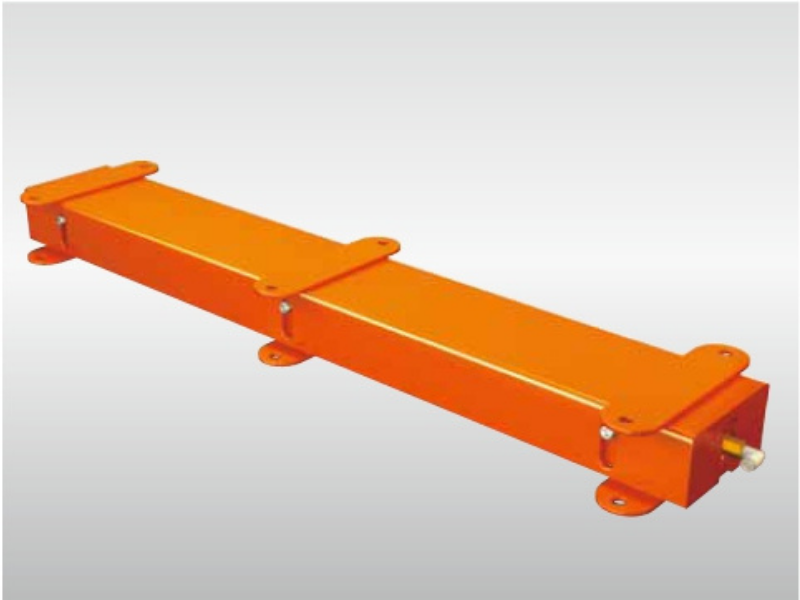

Standard Air Lift ALB-SB

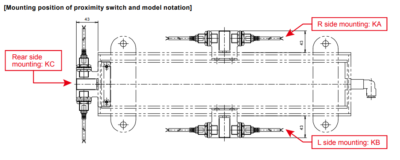

The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. Compact design with a low floor (90 mm). The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.

• Stroke: 30 mm
• For light loads
• Equipped with lowering speed adjustment function

Ask For Price

Transfer is possible even if the pallet is bent by a high stroke during direction change (45 mm). The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. The floor is lower and the movable load is larger compared with cylinders. The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.

• Stroke: 45 mm
• For heavy loads
• Equipped with lowering speed adjustment function

Ask For Price

Mounting the Air Lift (Ballon Lifter) is easy. It is stronger and stabler because two hoses are used. One lift is sufficient for small items. A proximity switch can be attached.

• Stroke: 30 mm
• For medium loads

Ask For Price

The Air Lift (Balloon Lift) has a more stable rising and lowering realized with two built-in hoses. Can be mounted from above easily. Optimum for large direction changing machines. A proximity switch can be attached.

• Stroke: 30 mm
• For heavy loads

Ask For Price
