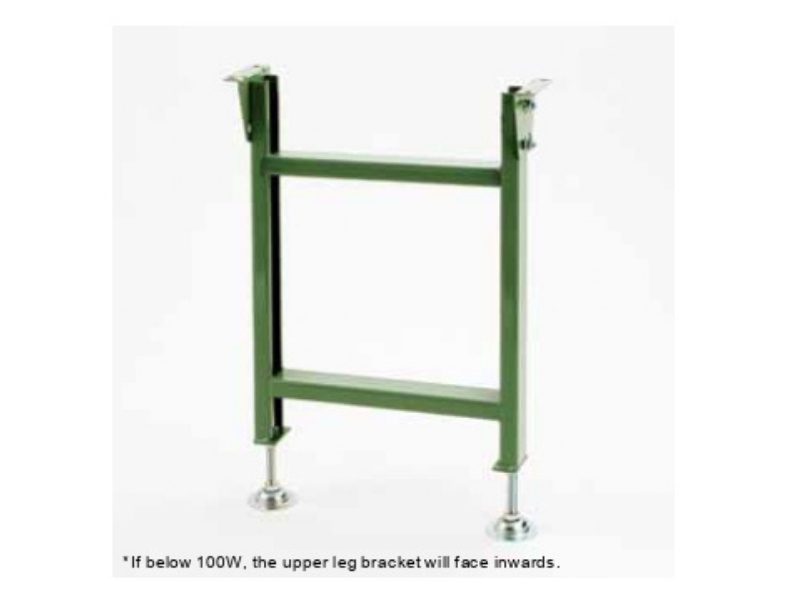

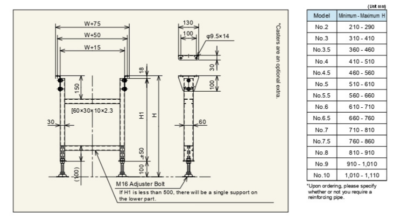

Stand For Idler Conveyor Model 2B

The gravity conveyor model is conveying light loads, ideal for conveying small items

• Idler diameter is φ 28.6, idler pitch is min P30.
• Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
• Pressed bearing, low cost, best-selling φ 28 product
• [ 60 standard frame

Ask For Price

The gravity conveyor model is conveying medium loads

• Idler diameter is φ 57.2, wall thickness is t2.1, improved impact resistance, idler pitch is min P75.
• Idler width(nominal) is 100W-1000W in standard increments of 50mm.
• High quality with precision-machined bearing
• [ 90 standard frame

Ask For Price

The gravity conveyor model is conveying heavy loads

• We have changed the precision-machined bearing of the previous model R-6038 to a bearing that meet standards, improving the quality of the idler.
• Idler diameter is φ 60.5, wall thickness is t3.8, idler pitch is min P75.
• Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
• [ 90 standard frame

Ask For Price

The gravity conveyor model is conveying very light loads

• Idler diameter is φ 38.0, idler pitch is min P50.
• Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
• Aluminum frame

Ask For Price
