A revolutionary solution for gentle and efficient material handling. Powered by compressed air, this technology lifts and moves items with precision, making it ideal for delicate or irregularly shaped goods. With adjustable lift force and minimal contact, our Air Lift System reduces the risk of damage and enhances operational efficiency. From electronics to pharmaceuticals, it’s a versatile choice for industries prioritizing careful handling. Elevate your material transport with the innovation and reliability of our Air Lift System.

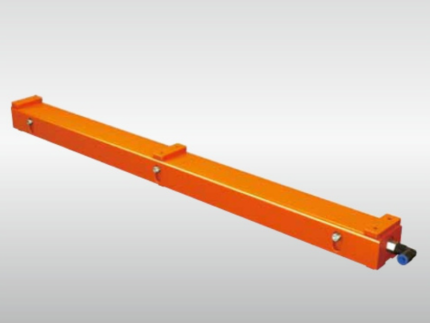

Standard Air Lift ALB-MB-N
The Air Lift (Ballon Lifter) has a side guide pin type. It is optimum for designing an up down machine in a small space. The mounting plate has tapped holes machined. A proximity switch can be attached.
- Stroke: 20 mm
- For light loads
Standard Air Lift ALB-SB
The Air Lift (Ballon Lifter) has a side guide pin type. Can be mounted from above easily. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads

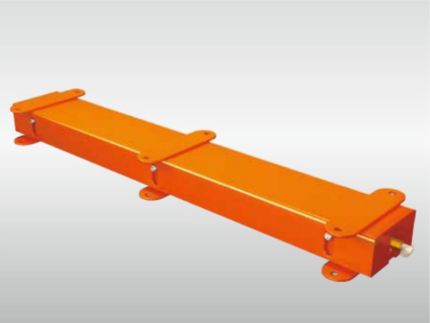

Standard Air Lift ALB-SB-H
The Air Lift (Ballon Lifter) has a side guide pin type. Can be mounted from above easily. A proximity switch can be attached
- Stroke: 20 mm
- For heavy loads

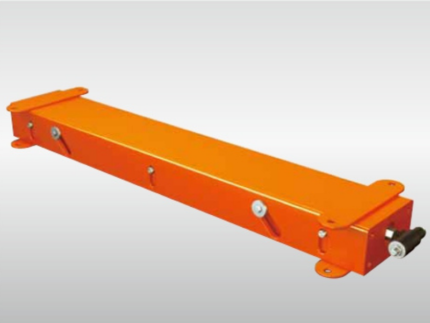

Air Lift With Parallel Link ALB-TBL-N
The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. Compact design with a low floor (90 mm). The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For light loads
- Equipped with lowering speed adjustment function

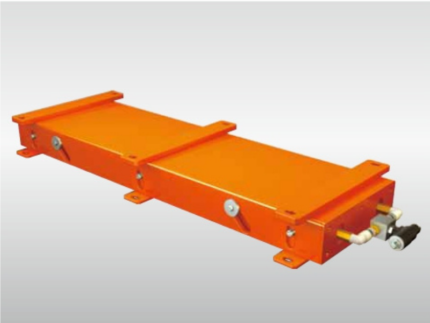

Air Lift With Parallel Link ALB-TBL-WN
The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. The hose can be replaced without disassembling the lift. The floor is lower and the movable load is larger compared with cylinders. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For heavy loads
- Equipped with lowering speed adjustment function

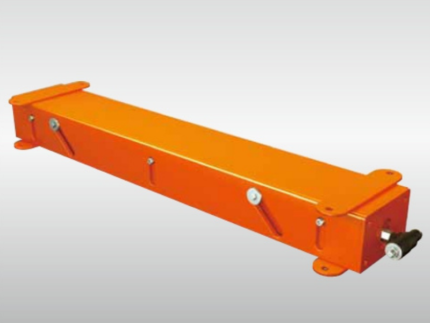

Air Lift With Parallel Link ALB-HB-N
Transfer is possible even if the pallet is bent by a high stroke during direction change (45 mm). The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. The floor is lower and the movable load is larger compared with cylinders. The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 45 mm
- For heavy loads
- Equipped with lowering speed adjustment function

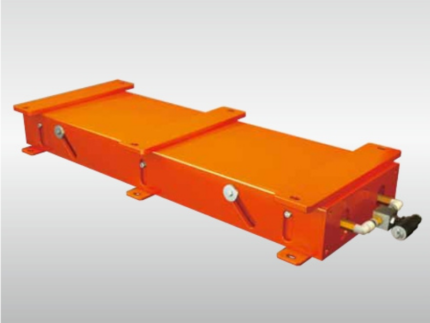

Air Lift With Parallel Link ALB-HB-WN
Compact design with a low floor for ultra heavy loads. The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. It is stronger and stabler because two hoses are used. The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 45 mm
- For ultra heavy loads
- Equipped with lowering speed adjustment function

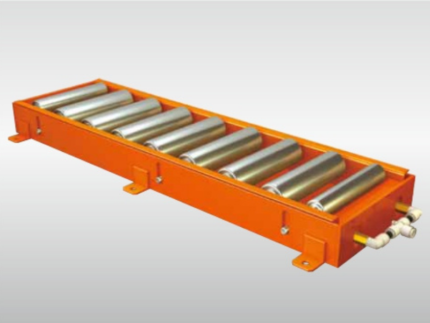

Air Lift With Rollers ALR-PR-57W
Mounting the Air Lift (Ballon Lifter) is easy. It is stronger and stabler because two hoses are used. One lift is sufficient for small items. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads

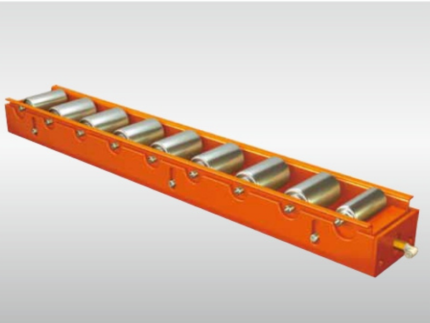

Air Lift With Rollers ALR-PR-57M
Mounting the Air Lift (Ballon Lifter) is easy. Quick delivery. Low cost. Low machine height and compact design. Free way of use. Can be used with air for factories. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads

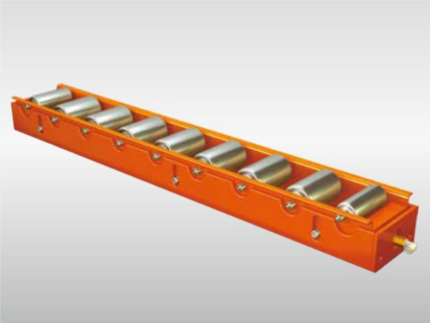

Air Lift With Rollers ALR-PR-57H
The upper frame Air Lift (Ballon Lifter) attached with rollers moves up and down. It is optimum for direction changing machines in a free roller line. The machine height is low (90 mm), and the air lift can be attached just by removing one roller from the existing roller conveyor (Ø 57 × 100 P) (crossing interval of carried items: 200 mm). A proximity switch can be attached.
- Stroke: 20 mm
- For heavy loads

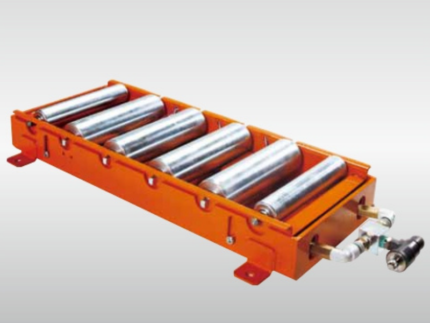

Air Lift With Rollers ALR-PR-57D
The upper frame Air Lift (Ballon Lifter) attached with rollers that have a built-in motor moves up and down. The machine height is low (90 mm), and it is optimum for low floor type direction changing machines. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 30 mm
- For medium loads
- Equipped with lowering speed adjustment function

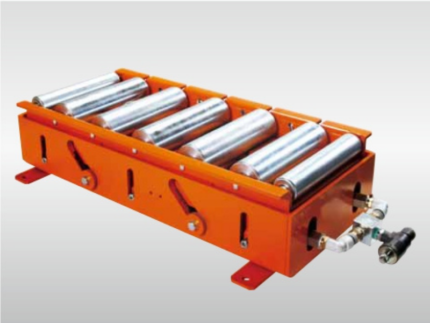

Air Lift With Rollers ALR-PRL-57D
The Air lift (Ballon Lifter) has a motor roller drive type having a parallel link mechanism built in. It is compact and a low floor type, and optimum for changing directions in a small space. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 45 mm
- For medium loads
- Equipped with lowering speed adjustment function
