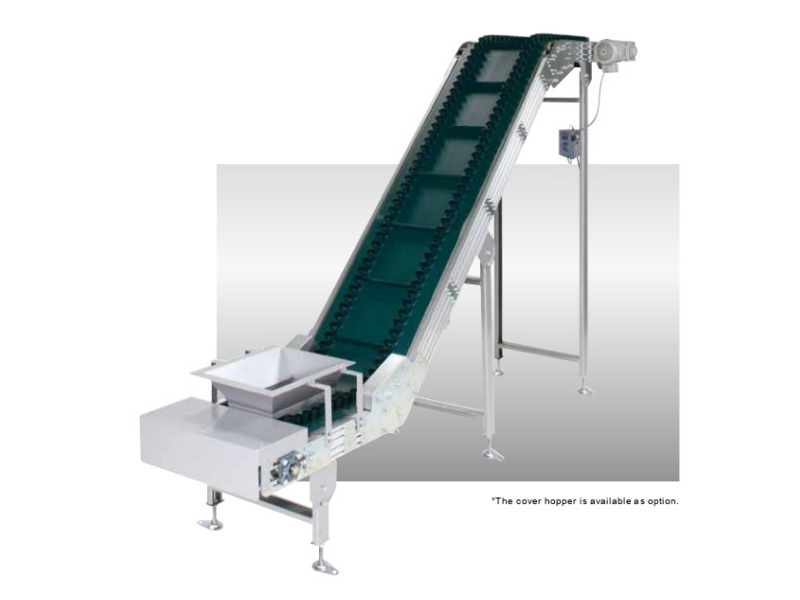

Belgotch Slope Belt Cleat Model Type120-ZD2S
The Belgotch (Belt Conveyor) has a slope belt cleat model that allows inclined conveyance. It supports an inclination angle of up to 60°.
- Aluminum frame
- Head drive
- Medium weight model
Description
For more information about the product you can click here to open catalog
