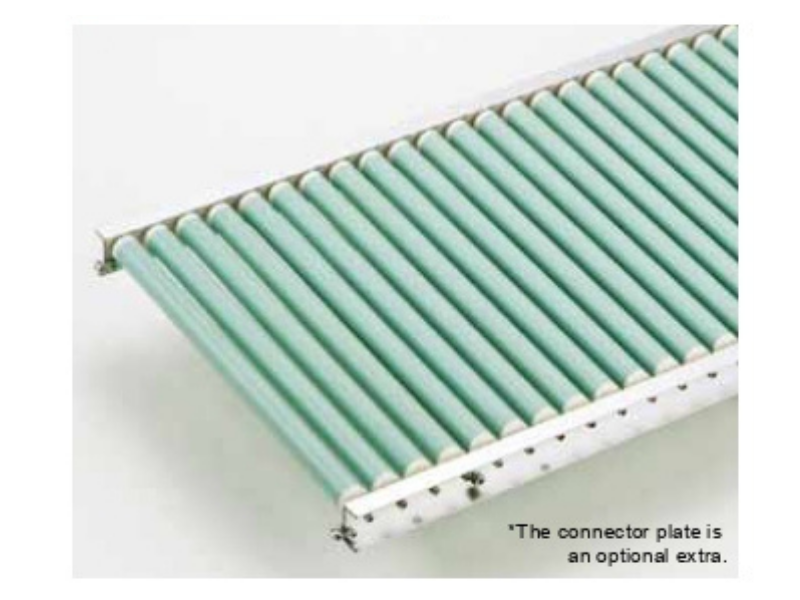

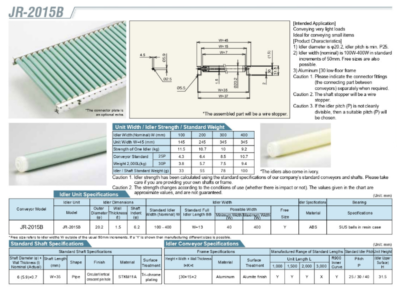

Resin Idler Conveyor JR-2015B

The gravity conveyor model is conveying heavy loads

• We have changed the precision-machined bearing of the previous model R-6038 to a bearing that meet standards, improving the quality of the idler.
• Idler diameter is φ 60.5, wall thickness is t3.8, idler pitch is min P75.
• Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
• [ 90 standard frame

Ask For Price

The gravity conveyor model is conveying very light loads, ideal for conveying small items

• Idler diameter is φ 30.5, idler pitch is min P40.
• Idler width(nominal) is 100W-500W in standard increments of 50mm. Free sizes are also possible.
• Aluminum frame

Ask For Price

The gravity conveyor model is conveying very light loads

• Idler diameter is φ 50.3, idler pitch is min P75.
• Idler width(nominal) is 100W-600W in standard increments of 50mm. Free sizes are also possible.
• Aluminum frame

Ask For Price

Stand Model 2FB (Strong Type) gravity conveyor

Ask For Price
