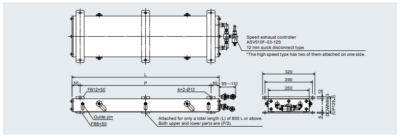

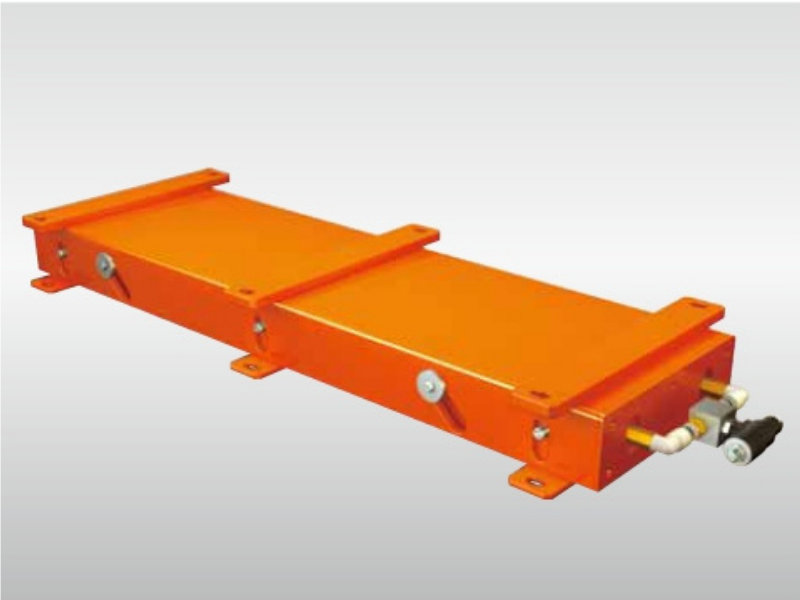

Air Lift With Parallel Link ALB-TBL-WN

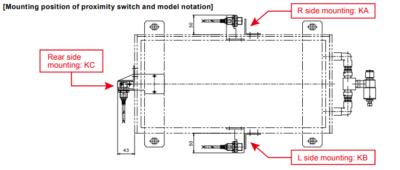

The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. The hose can be replaced without disassembling the lift. The floor is lower and the movable load is larger compared with cylinders. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For heavy loads
- Equipped with lowering speed adjustment function
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
