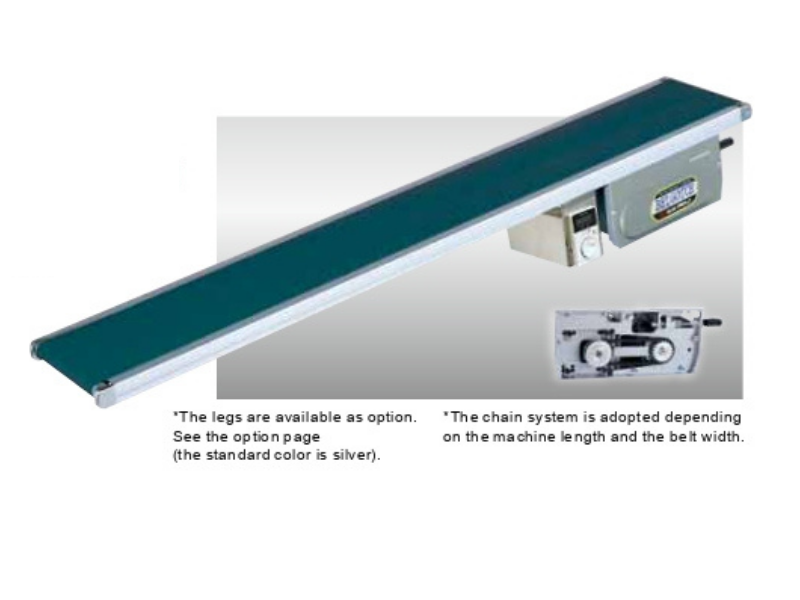

Belgotch Meander-less Model Type34-G1
The Belgotch (Belt Conveyor) has a stable conveyance with less deviation realized by adopting a meander-less belt. It is suitable for places that are difficult to perform maintenance inspection such as when the conveyor is set to other machines. It also supports severe use conditions such as forward reverse operations and can be used for various purposes.
- Aluminum frame
- Center drive
- Light weight model
Description
For more information about the product you can click here to open catalog
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch Short Width Model Type34-N1
The Belgotch (Belt Conveyor) uses a 34-frame.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Standard Model Type34-S1
A timing belt is used for the drive part as standard for the first time in this class. the general-purposes model of the Belgotch (belt conveyor) series having excellent quietness and durability.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Tilted Model Type34-T1
The Belgotch (Belt Conveyor) model smoothly carries things from the tilted surface to the horizontal surface without making a connection. A vertical groove belt for slopes is used as standard, and the drive part is also movable. Therefore, the conveyor can be installed to slopes or horizontal places depending on the application. The angle can also be adjusted easily based on the layout.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Troughed Belt Model Type34-V1
The belt surface of Belgotch (Belt Conveyor) is troughed at the center, and this allows carrying small things and particulate works that are likely to be spilled without fail. The right and left belt support plates can easily be removed for cleaning etc.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Knife Edge Model Type34-K1
The 3-mm end R has a sharp edge, and the Belgotch (Belt Conveyor) model allows smooth transfer of small things that are about 20 mm. The standard specification has a knife edge on one side.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Slope Belt Cleat Model Type60-ZD2
The Belgotch (Belt Conveyor) has a slope belt cleat model that allows inclined conveyance (with a cleat height of 30 H and a cleat pitch of about 300 P). It supports an inclination angle of up to 45°.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Standard Strong Type Model Type60-SZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
