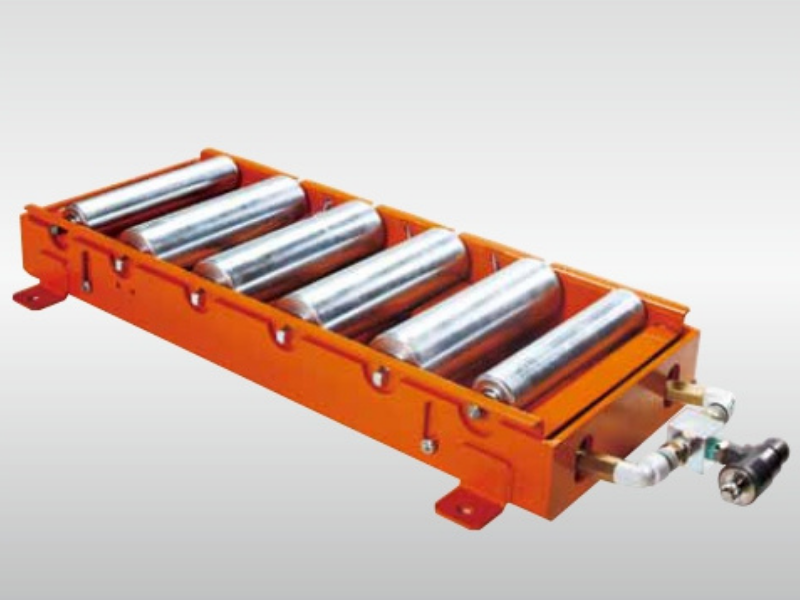

Air Lift With Rollers ALR-PR-57D
The upper frame Air Lift (Ballon Lifter) attached with rollers that have a built-in motor moves up and down. The machine height is low (90 mm), and it is optimum for low floor type direction changing machines. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 30 mm
- For medium loads
- Equipped with lowering speed adjustment function
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Standard Air Lift ALB-SB
The Air Lift (Ballon Lifter) has a side guide pin type. Can be mounted from above easily. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads
Air Lift With Parallel Link ALB-TBL-N
The Air Lift (Ballon Lifter) has a built-in type of the parallel link mechanism. Compact design with a low floor (90 mm). The hose can be replaced without disassembling the lift. A proximity switch can be attached. Attached with a speed exhaust controller.
- Stroke: 30 mm
- For light loads
- Equipped with lowering speed adjustment function
Air Lift With Rollers ALR-PR-57W
Mounting the Air Lift (Ballon Lifter) is easy. It is stronger and stabler because two hoses are used. One lift is sufficient for small items. A proximity switch can be attached.
- Stroke: 30 mm
- For medium loads
Air Lift With Rollers ALR-PR-57H
The upper frame Air Lift (Ballon Lifter) attached with rollers moves up and down. It is optimum for direction changing machines in a free roller line. The machine height is low (90 mm), and the air lift can be attached just by removing one roller from the existing roller conveyor (Ø 57 × 100 P) (crossing interval of carried items: 200 mm). A proximity switch can be attached.
- Stroke: 20 mm
- For heavy loads
Air Lift With Rollers ALR-PRL-57D
The Air lift (Ballon Lifter) has a motor roller drive type having a parallel link mechanism built in. It is compact and a low floor type, and optimum for changing directions in a small space. A larger movable load and stabler movement are realized by the two hoses. A proximity switch can be attached to the rising/lowering detection sensor.
- Stroke: 45 mm
- For medium loads
- Equipped with lowering speed adjustment function
Air Lift With Wheels ALW-36
The Air Lift (Ballon Lifter) can be built in without changing the roller pitch of the roller conveyor (Ø 57 × 100 P). A proximity switch can be attached.
- Stroke: 20 mm
- For light loads
Air Lift With Ball Casters ALB-BB
The Air Lift (Ballon Lifter) can rotate freely because the ball casters are built in. A proximity switch can be attached.
- Stroke: 20 mm
- For medium loads
Standard Air Lift ALB-WB
The Air Lift (Balloon Lift) has a more stable rising and lowering realized with two built-in hoses. Can be mounted from above easily. Optimum for large direction changing machines. A proximity switch can be attached.
- Stroke: 30 mm
- For heavy loads
