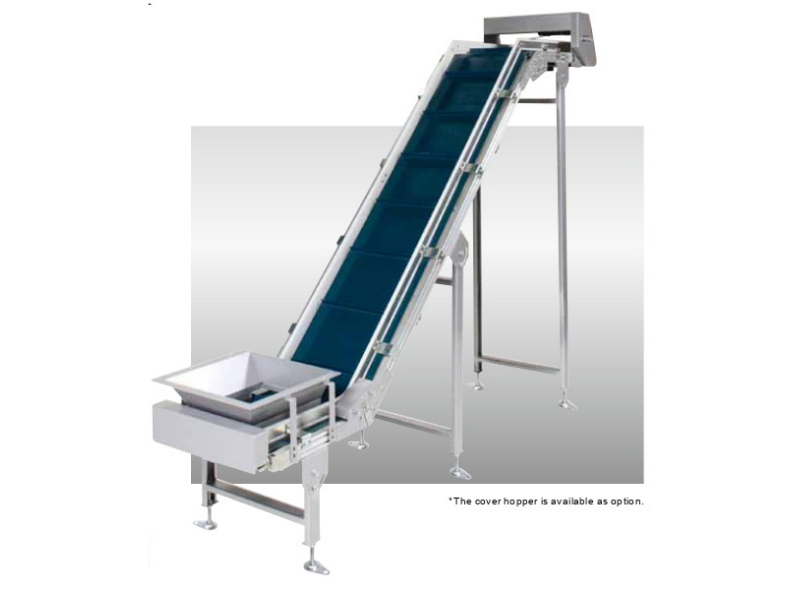

Belgotch Slope Belt Cleat Model Type60-ZD2
The Belgotch (Belt Conveyor) has a slope belt cleat model that allows inclined conveyance (with a cleat height of 30 H and a cleat pitch of about 300 P). It supports an inclination angle of up to 45°.

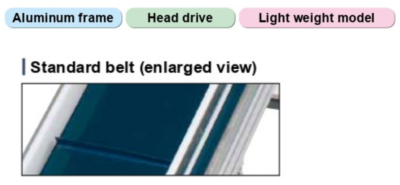

- Aluminum frame
- Head drive
- Light weight model
Description
For more information about the product you can click here to open catalog
