For more information about the product you can click here to open catalog

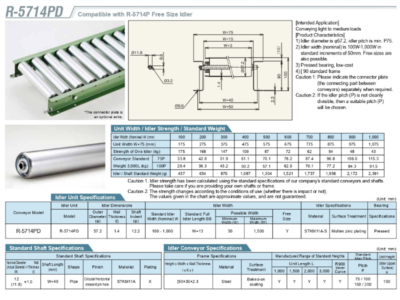

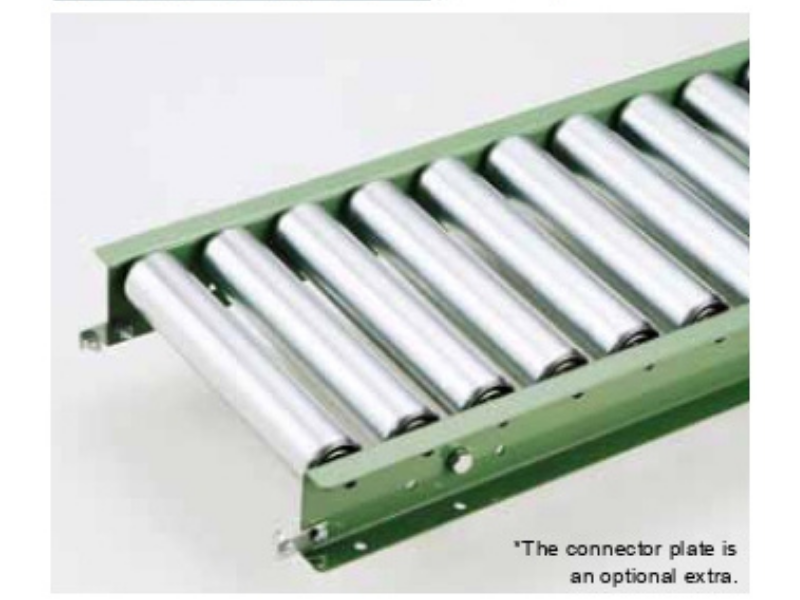

Steel Idler Conveyor R-5714PD
The gravity conveyor model is conveying light to medium loads
- Idler diameter is φ 57.2, idler pitch is min P2075.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- Pressed bearing, low cost
- [ 90 standard frame
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Steel Idler Conveyor R-3812P
The gravity conveyor model is conveying light to medium loads, ideal for conveying small items
- Idler diameter is φ 38.1, idler pitch is min P50.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm.
- Most versatile for conveying light to medium loads
- Pressed bearing, low cost, best-selling φ 38 product
- [ 60 standard frame
Steel Idler Conveyor R-5721D
The gravity conveyor model is conveying light to medium loads
- Idler diameter is φ 57.2, wall thickness is t2.1, improved impact resistance, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Steel Idler Conveyor R-5723D
The gravity conveyor model is conveying heavy loads
- Idler diameter is φ 57.2, wall thickness is t2.3, idler pitch is min P75.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Steel Idler Conveyor R-7642
The gravity conveyor model is conveying heavy loads
- Idler diameter is φ 76.3, wall thickness is t4.2, idler pitch is min P100.
- Idler width(nominal) is 100W-1000W in standard increments of 50mm. Free sizes are also possible.
- High quality with precision-machined bearing
- [ 90 standard frame
Aluminum Idler Conveyor RA-3816
The gravity conveyor model is conveying light loads
- Idler diameter is φ 38.1, idler pitch is min P50. It is the most versatile out of our aluminum idler models
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
- Pressed bearing, low cost
Aluminum Idler Conveyor RA-4515
The gravity conveyor model is conveying light loads
- Idler diameter is φ 45.0, idler pitch is min P50.
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
- Pressed bearing, low cost
Resin Idler Conveyor JR-5028
The gravity conveyor model is conveying very light loads
- Idler diameter is φ 50.3, idler pitch is min P75.
- Idler width(nominal) is 100W-600W in standard increments of 50mm. Free sizes are also possible.
- Aluminum frame
Tapered Idler Conveyor R-TCN900
The gravity conveyor model is conveying light to medium items
- For use with inner R900(mm), with an angle of 90°
- Idler width(nominal) is 300W-800W in standard increments of 100mm.
- The smaller diameter side of the idler is φ 42.7
