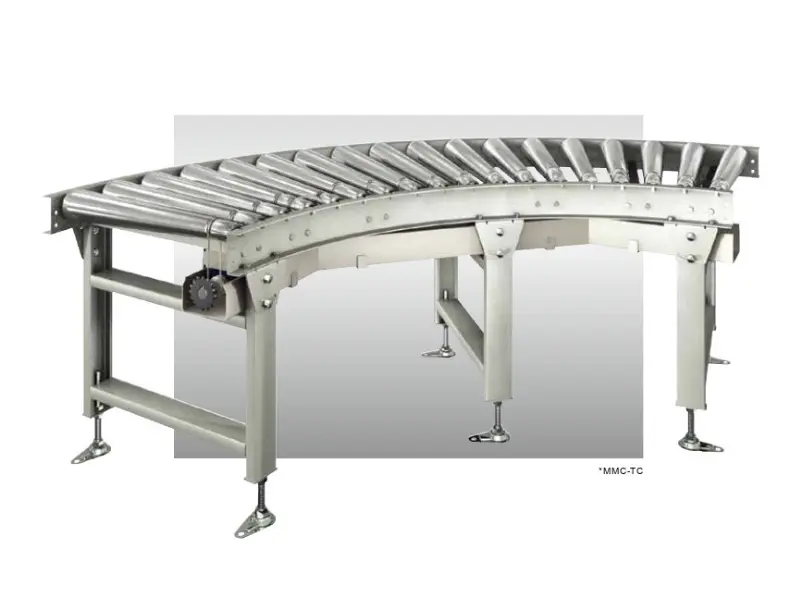

Steel Driver Roller Conveyor M MMC-TC
Performs quiet and smooth conveyance compared with the chain drive system even in the case of high speed conveyance by the drive shaft drive system.
- Steel
- Belt transmission
- Medium weight model
- 90-frame series
- Simple Accumulation
Description
Related products
Steel In-chain Driven Tapered Roller Conveyor KTR-S
Steel Out-chain Driven Tapered Roller Conveyor KTR-SW
Steel Chain Driven Accumulation Roller Conveyor MAC-CS/G
The MAC accumulation roller conveyor always gives optimum driving force to carried items by adjusting the spring force. The MAC-CS model, which adjusts the driving force for every several rollers , and the MAC-CN model, which adjusts the driving force for each roller, can be selected depending on the applications and use conditions. And the MAC-G model is chain driven accumulation roller conveyor for middle weight things that uses #50 single chain.
- Steel
- Chain transmission
- Medium weight model
- Standard series
Steel Driver Roller Conveyor M MMC-DR
Steel Flat Belt Driven Roller Conveyor FLY-E
DC Systematic Steel Roller Conveyor (DC Motor Rollers) SST-DC
The DC systematic steel roller conveyor (DC motor rollers) has DC-57A model, DC-57B model, DC-38D model, DC-57D model, and DC-57AQ model. DC motor rollers with high input and output efficiency that gives about 300% torque compared with the AC motor of the same size and can change the speed in 32 stages at maximum by the internal volume setting inside the driver.
- Steel
- Motor roller transmission
- Medium weight model
- [90-frame series
Steel Rubber Belt Conveyor LBC/MBC/WBC
The steel belt conveyor LBC model optimum for carrying things with an unstable shape, the belt conveyor utilizes a rubber belt with thickness and excellent elasticity. And the steel belt conveyor MBC model is advanced medium weight model belt conveyor with excellent performance of the LBC such as its simple structure and unitized parts. And The steel belt conveyor WBC model has in addition to a belt width of 700, 800, to 1400 variations are now available, it is suitable for carrying things and pallets with an unstable shape.
- Steel
- 90/120/250-frame
- Head drive
- Medium weight model and Heavy weight model (only WBC model)
- Macchikon/Emukon/Dabukon
Steel Basic Chain Conveyor SCC-40A/B
The steel chain conveyor SCC-40A model continously runs and has the simplest structure. High maintainability and durability because of its iron chain rail structure. And the steel chain conveyor SCC-40B model is performs high rigidity as a chain conveyor and has excellent durability because the iron chain rails are replaceable.
- Iron frame
- Iron rails
- Medium weight model
