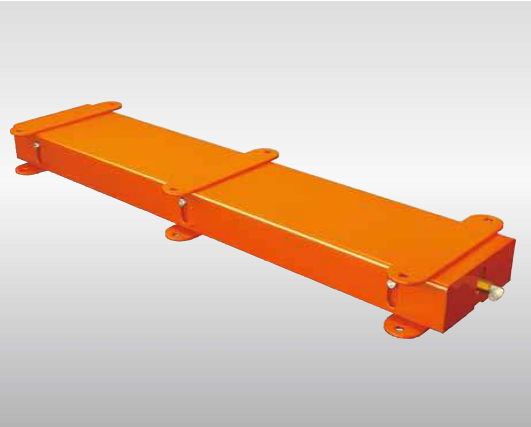

Standard Air Lift ALB-WB

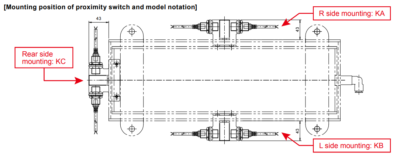

The Air Lift (Balloon Lift) has a more stable rising and lowering realized with two built-in hoses. Can be mounted from above easily. Optimum for large direction changing machines. A proximity switch can be attached.
- Stroke: 30 mm
- For heavy loads
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
