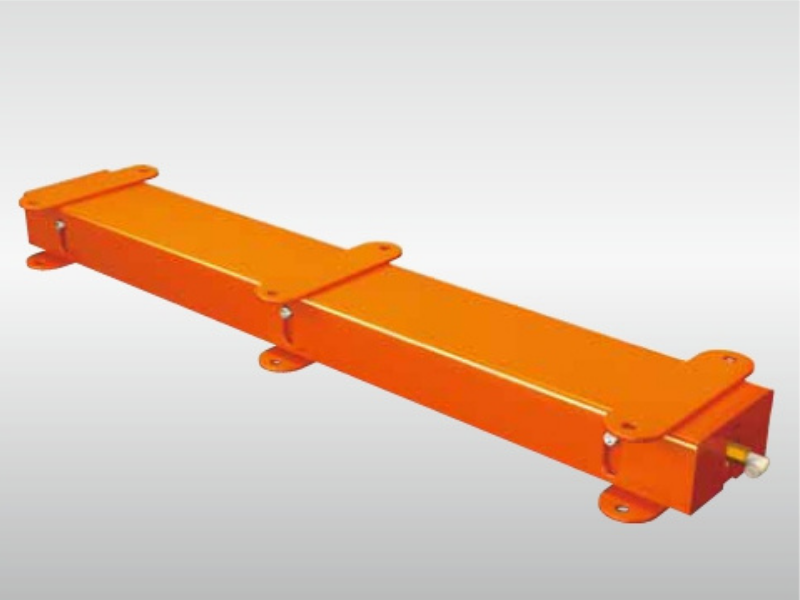

Standard Air Lift ALB-SB-H

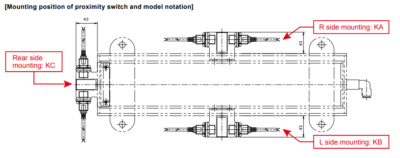

The Air Lift (Ballon Lifter) has a side guide pin type. Can be mounted from above easily. A proximity switch can be attached
- Stroke: 20 mm
- For heavy loads
