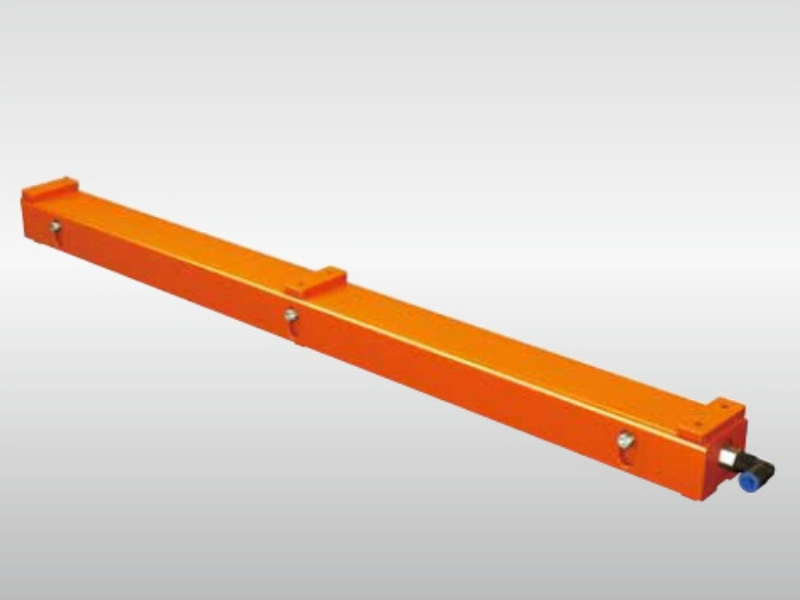

Standard Air Lift ALB-MB-N
The Air Lift (Ballon Lifter) has a side guide pin type. It is optimum for designing an up down machine in a small space. The mounting plate has tapped holes machined. A proximity switch can be attached.
- Stroke: 20 mm
- For light loads
Description
Additional information

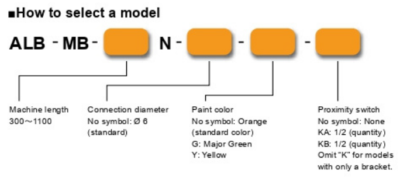

| Length |
300 ,400 ,500 ,600 ,700 ,800 ,900 ,1000 ,1100 |
|---|---|
| Color |
Orange ,Major Green ,Yellow |

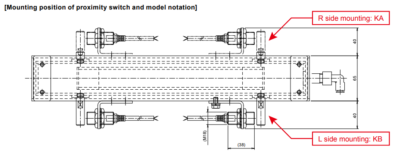

| Proximity Switch |
None ,KA1 ,KA2 ,KB1 ,KB2 |
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
