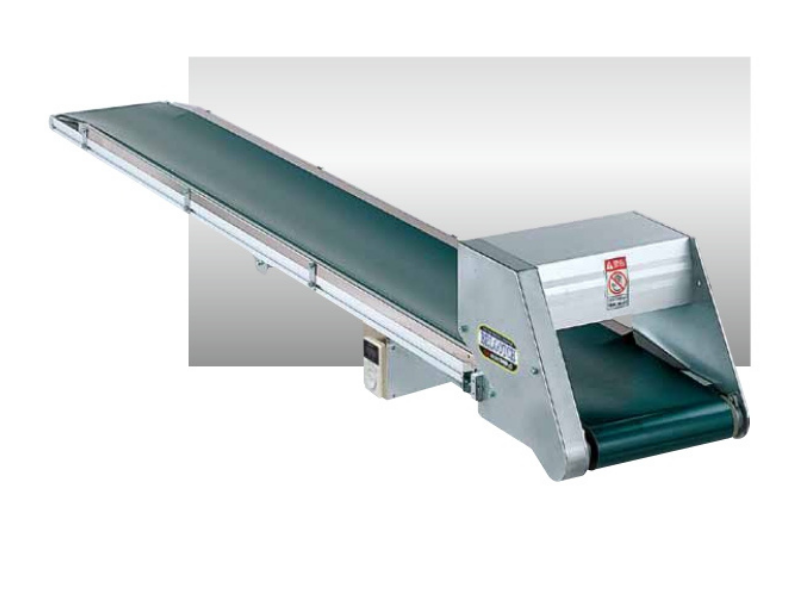

Belgotch Troughed Belt Model Type34-V2

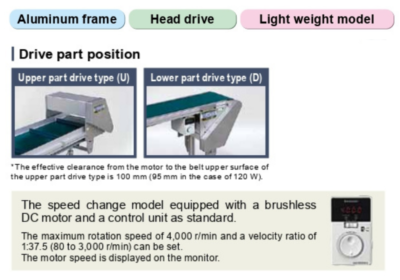

The hull-shaped belt type Belgotch (Belt Conveyor) model that can carry small things and particulate works that are likely to be spilled without fail. The upper part drive type should be used when the items to be carried contain water or oil.
- Aluminum frame
- Head drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch High Speed Model Type34-H1
The high grade Belgotch (Belt Conveyor) model that meets the needs of factories with advanced labor saving and faster speed. Its compact design with frame thickness of 34 mm does not require a large place for installation. The drive part that moves fast has low-noise and high-durability specifications, and carries things efficiently without impairing the work environment.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Belt Cleat Model Type34-D2
A belt cleat and a guide (with a height of 30 mm) are used as standard. The Belgotch (Belt Conveyor) can be used for inclined conveyance of bulk solids and things with an unstable shape or for pitch feeding at a horizontal surface.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Knife Edge Model Type34-K2
The Belgotch (Belt Conveyor) has a conveyor for carrying small things (with a length of 20 or more) that have an R3 plate used on the loading side. (The knife edge part is on one side only).
- Aluminum frame
- Head drive
- Light weight model
Belgotch Meander-less Model Type60-G1
The general-purpose model of the Belgotch (Belt Conveyor) series that uses a 60-frame with enhanced strength and have no projection to the frame side surface of the drive part.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Model Type60-G2
The Belgotch (Belt Conveyor) has a stable conveyance with less deviation realized by adopting a meander-less belt. It is suitable for places where it is difficult to perform maintenance inspection such as when the conveyor is set to other machines.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Meander-less Model Type90-G1
The Belgotch (Belt Conveyor) has a carrier table system, which realizes stable conveyance of unstable heavy things, is adopted.
- Aluminum frame
- Center drive
- Medium weight model
Belgotch Standard Strong Type Model Type60-SZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
