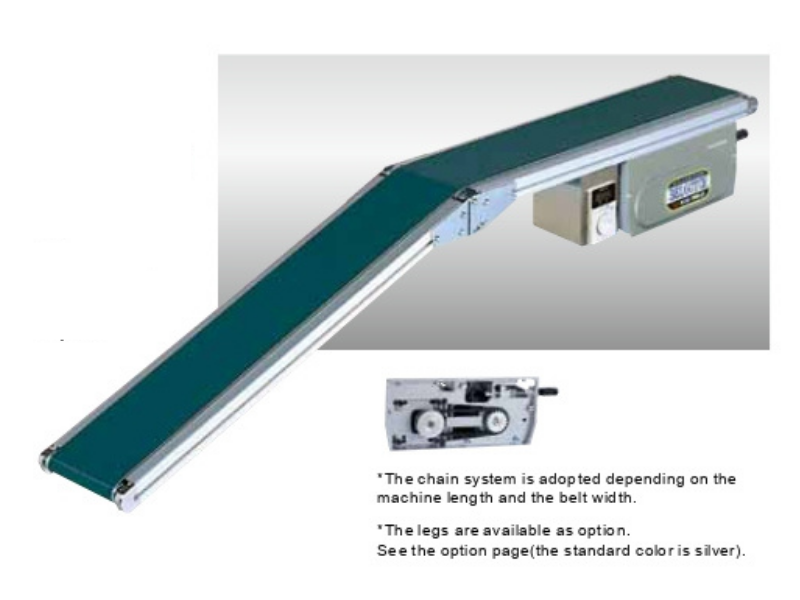

Belgotch Tilted Model Type34-T1
The Belgotch (Belt Conveyor) model smoothly carries things from the tilted surface to the horizontal surface without making a connection. A vertical groove belt for slopes is used as standard, and the drive part is also movable. Therefore, the conveyor can be installed to slopes or horizontal places depending on the application. The angle can also be adjusted easily based on the layout.

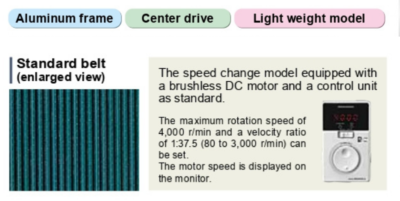

- Aluminum frame
- Center drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
