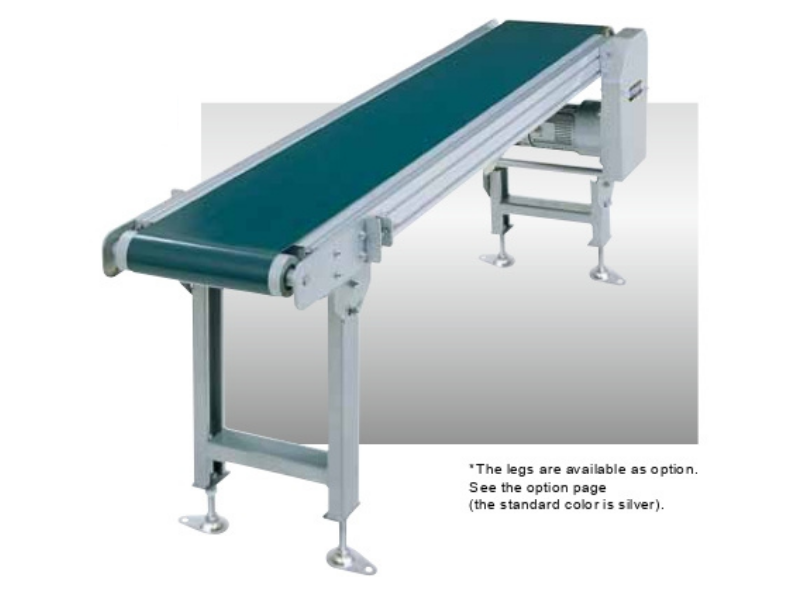

Belgotch Standard Model Type90-S2
A Belgotch (Belt Conveyor) model of the head drive S2 series for carrying heavy things. A motor up to 400 W can be selected.
- Aluminum frame
- Head drive
- Medium weight model
Description
For more information about the product you can click here to open catalog
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
