For more information about the product you can click here to open catalog

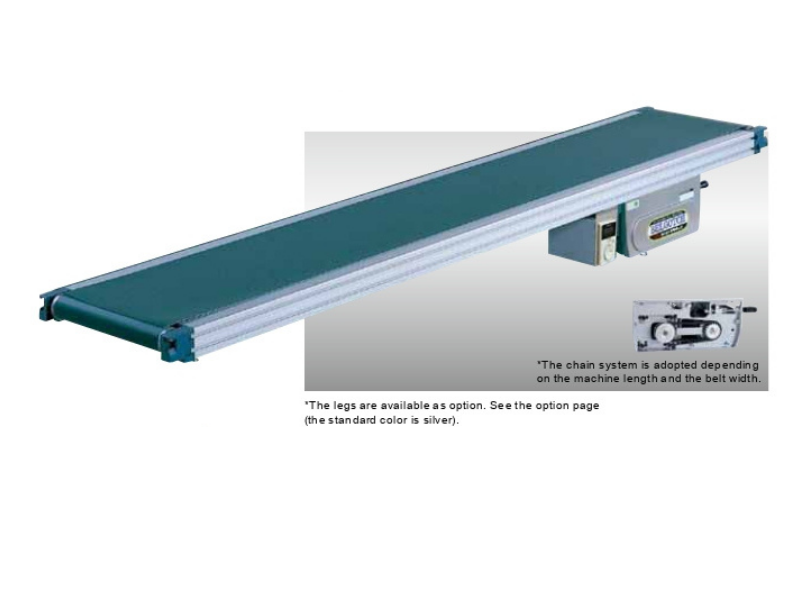

Belgotch Standard Model Type60-S1
The general-purpose model of the Belgotch (Belt Conveyor) series that uses a 60-frame with enhanced strength and have no projection to the frame side surface of the drive part.

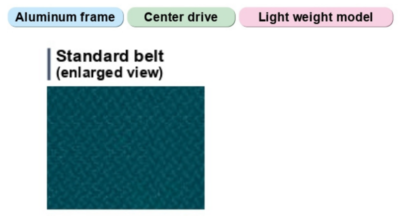

- Aluminum frame
- Center drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
