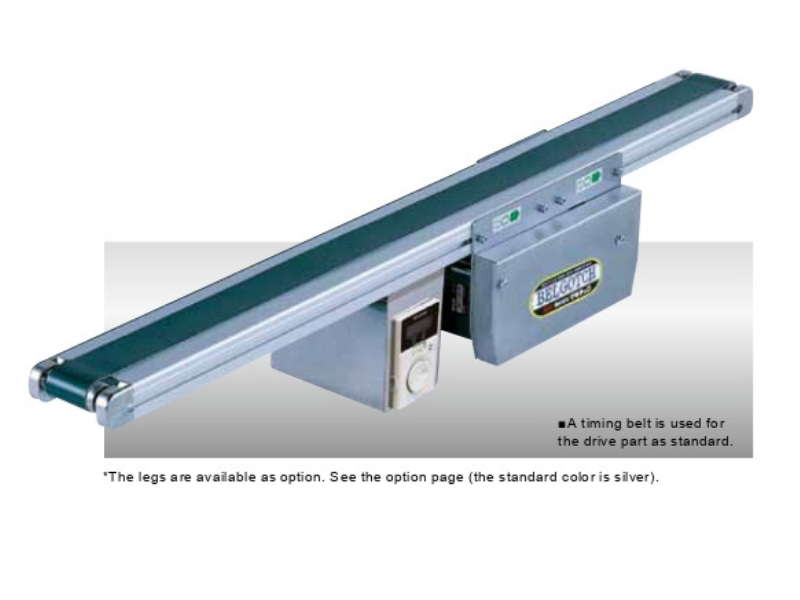

Belgotch Short Width Model Type34-N1
The Belgotch (Belt Conveyor) uses a 34-frame.
- Aluminum frame
- Center drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
