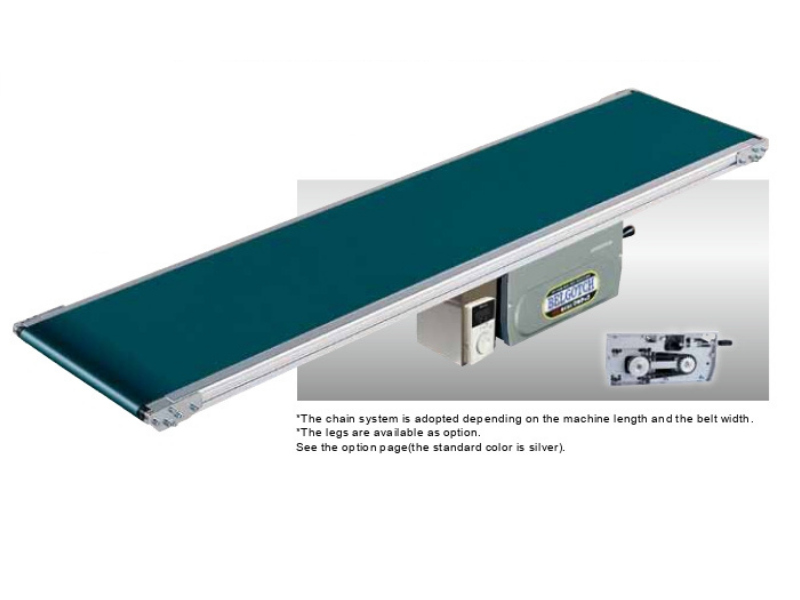

Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
