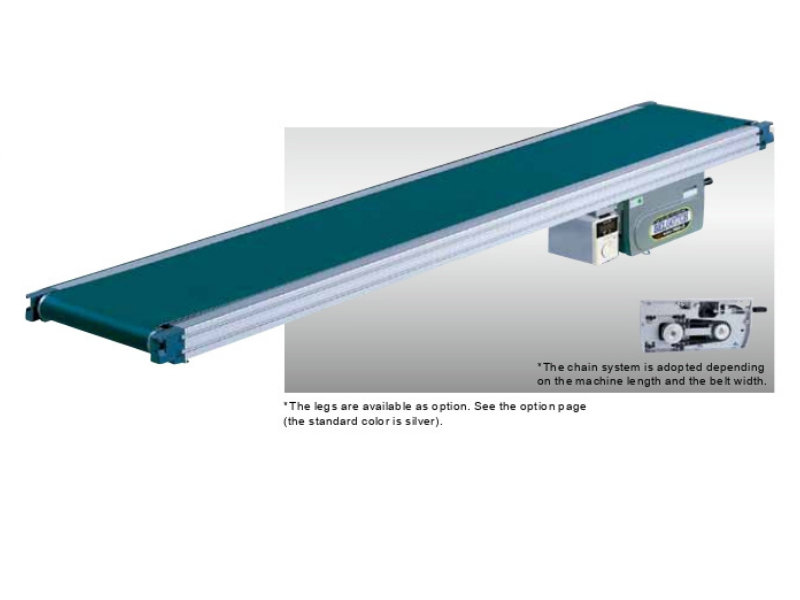

Belgotch Meander-less Model Type60-G1
The general-purpose model of the Belgotch (Belt Conveyor) series that uses a 60-frame with enhanced strength and have no projection to the frame side surface of the drive part.
- Aluminum frame
- Center drive
- Light weight model
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch Tilted Model Type34-T1
The Belgotch (Belt Conveyor) model smoothly carries things from the tilted surface to the horizontal surface without making a connection. A vertical groove belt for slopes is used as standard, and the drive part is also movable. Therefore, the conveyor can be installed to slopes or horizontal places depending on the application. The angle can also be adjusted easily based on the layout.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Knife Edge Model Type34-K1
The 3-mm end R has a sharp edge, and the Belgotch (Belt Conveyor) model allows smooth transfer of small things that are about 20 mm. The standard specification has a knife edge on one side.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Joint Model Type34-J1
The Belgotch (Belt Conveyor) model has a short machine length that is optimum for connecting conveyance between processes. The minimum machine length is 300 mm.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Model Type60-G2
The Belgotch (Belt Conveyor) has a stable conveyance with less deviation realized by adopting a meander-less belt. It is suitable for places where it is difficult to perform maintenance inspection such as when the conveyor is set to other machines.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Slope Belt Cleat Model Type120-ZD2S
The Belgotch (Belt Conveyor) has a slope belt cleat model that allows inclined conveyance. It supports an inclination angle of up to 60°.
- Aluminum frame
- Head drive
- Medium weight model
Belgotch Standard Strong Type Model Type60-SZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Strong Type Model Type60-GZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
