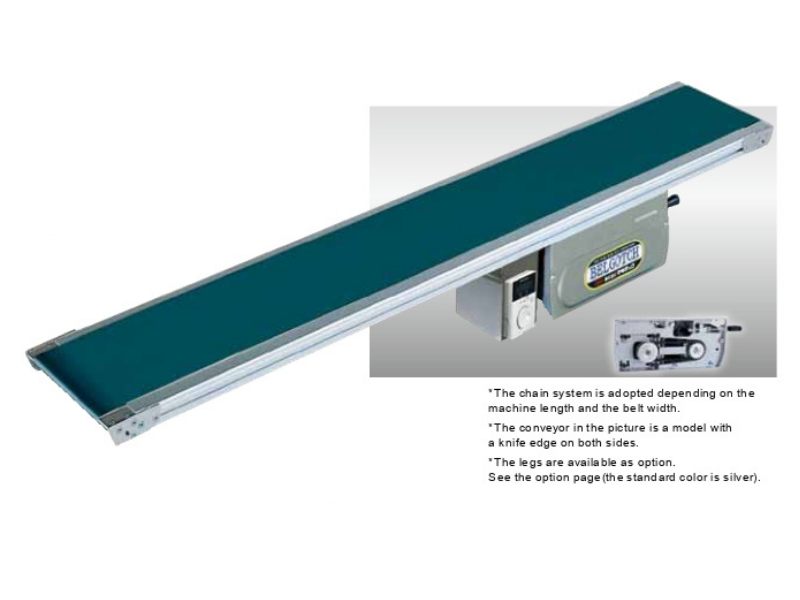

Belgotch Knife Edge Model Type34-K1
The 3-mm end R has a sharp edge, and the Belgotch (Belt Conveyor) model allows smooth transfer of small things that are about 20 mm. The standard specification has a knife edge on one side.
- Aluminum frame
- Center drive
- Light weight model
Description
For more information about the product you can click here to open catalog
Shipping & Delivery


SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch Tilted Model Type34-T1
The Belgotch (Belt Conveyor) model smoothly carries things from the tilted surface to the horizontal surface without making a connection. A vertical groove belt for slopes is used as standard, and the drive part is also movable. Therefore, the conveyor can be installed to slopes or horizontal places depending on the application. The angle can also be adjusted easily based on the layout.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Joint Model Type34-J1
The Belgotch (Belt Conveyor) model has a short machine length that is optimum for connecting conveyance between processes. The minimum machine length is 300 mm.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Belt Cleat Model Type34-D2
A belt cleat and a guide (with a height of 30 mm) are used as standard. The Belgotch (Belt Conveyor) can be used for inclined conveyance of bulk solids and things with an unstable shape or for pitch feeding at a horizontal surface.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG2
The loading side of the conveyor is R8, and the Belgotch (Belt Conveyor) model allows smooth transfer. Stable conveyance with less deviation is realized by adopting a meander-less belt for the roller edge. Use the conveyor for connection to a large conveyor. (The roller edge part is on one side only).
- Aluminum frame
- Head drive
- Light weight model
Belgotch Standard Model Type60-S1
The general-purpose model of the Belgotch (Belt Conveyor) series that uses a 60-frame with enhanced strength and have no projection to the frame side surface of the drive part.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Model Type90-G1
The Belgotch (Belt Conveyor) has a carrier table system, which realizes stable conveyance of unstable heavy things, is adopted.
- Aluminum frame
- Center drive
- Medium weight model
Belgotch Slope Belt Cleat Model Type60-ZD2
The Belgotch (Belt Conveyor) has a slope belt cleat model that allows inclined conveyance (with a cleat height of 30 H and a cleat pitch of about 300 P). It supports an inclination angle of up to 45°.
- Aluminum frame
- Head drive
- Light weight model
