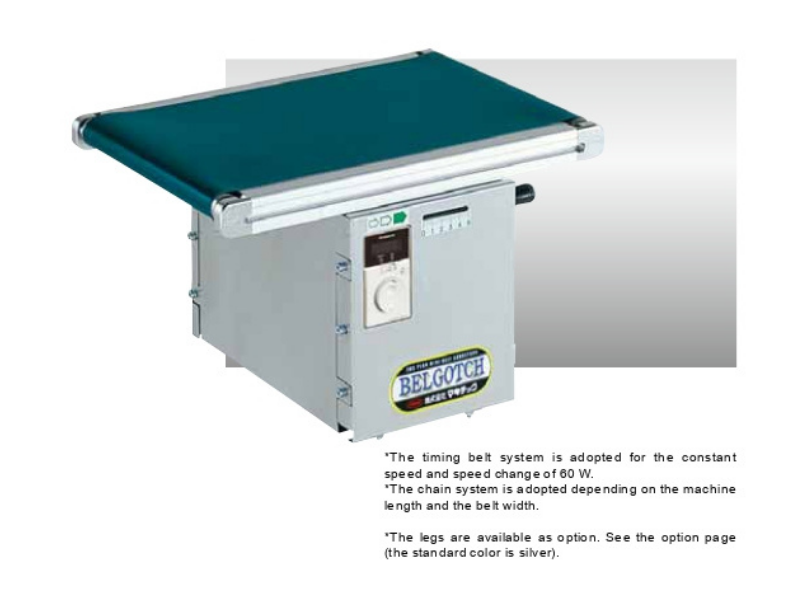

Belgotch Joint Model Type34-J1
The Belgotch (Belt Conveyor) model has a short machine length that is optimum for connecting conveyance between processes. The minimum machine length is 300 mm.
- Aluminum frame
- Center drive
- Light weight model
Description
For more information about the product you can click here to open catalog
Shipping & Delivery


SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
