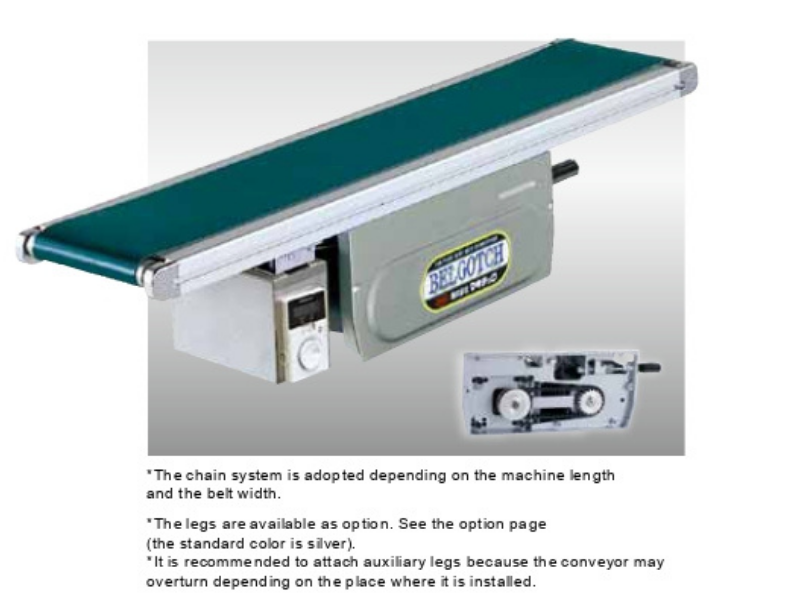

Belgotch High Speed Model Type34-H1
The high grade Belgotch (Belt Conveyor) model that meets the needs of factories with advanced labor saving and faster speed. Its compact design with frame thickness of 34 mm does not require a large place for installation. The drive part that moves fast has low-noise and high-durability specifications, and carries things efficiently without impairing the work environment.
- Aluminum frame
- Center drive
- Light weight model
Description
For more information about the product you can
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
Related products
Belgotch Troughed Belt Model Type34-V1
The belt surface of Belgotch (Belt Conveyor) is troughed at the center, and this allows carrying small things and particulate works that are likely to be spilled without fail. The right and left belt support plates can easily be removed for cleaning etc.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG1
Dimension R at both ends of the conveyor is 8 mm, and the Belgotch (Belt Conveyor) model allows smooth transfer. A meander-less belt is adopted for the roller edge. Stable conveyance with less deviation is realized. Use the conveyor for items with a length of 40 mm or more. Entrance, exit, and one-side conveyors can also be made.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Knife Edge Model Type34-K1
The 3-mm end R has a sharp edge, and the Belgotch (Belt Conveyor) model allows smooth transfer of small things that are about 20 mm. The standard specification has a knife edge on one side.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Joint Model Type34-JG1
The meander-less Belgotch (Belt Conveyor) model of the joint model TYPE 34-J1. It supports severe conditions such as forward and reverse operations and installation to places where it is difficult to perform maintenance inspection.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Standard Model Type34-S2
The Belgotch (Belt Conveyor) has rollers that do not roll on the surface of the belt, and the conveyor is suitable for carrying items that get dirty easily. The upper part drive type should be used when there is a small amount of water or oil.
- Aluminum frame
- Head drive
- Light weight model
Belgotch Roller Edge Meander-less Model Type34-RG2
The loading side of the conveyor is R8, and the Belgotch (Belt Conveyor) model allows smooth transfer. Stable conveyance with less deviation is realized by adopting a meander-less belt for the roller edge. Use the conveyor for connection to a large conveyor. (The roller edge part is on one side only).
- Aluminum frame
- Head drive
- Light weight model
Belgotch Standard Strong Type Model Type60-SZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
Belgotch Meander-less Strong Type Model Type60-GZ1P
The Belgotch (Belt Conveyor) model is renewed by adopting a flange unit for the drive pulley axis receiving part. The strong type conveyor that allows easy maintenance because of its simple structure. The meander-less model has a cleat for preventing meander on the back side of the belt and performs stable conveyance.
- Aluminum frame
- Center drive
- Light weight model
