For more information about the product you can click here to open catalog

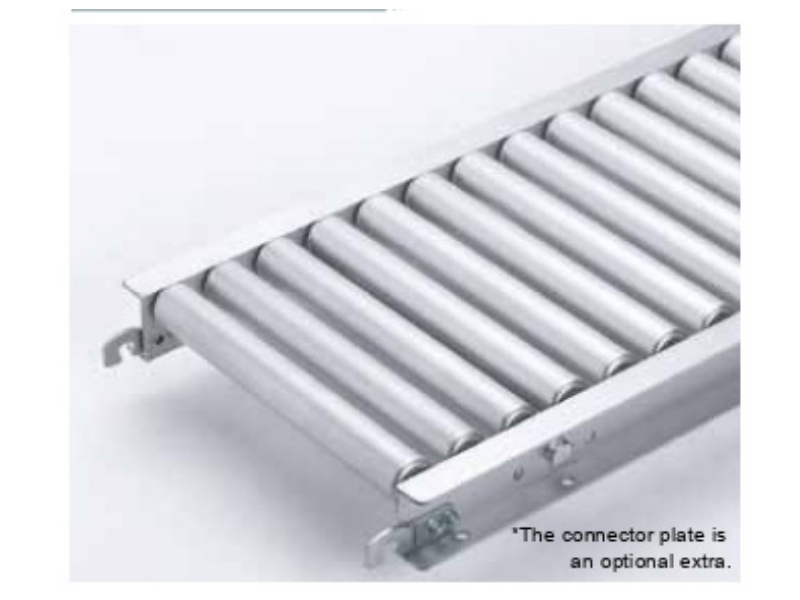

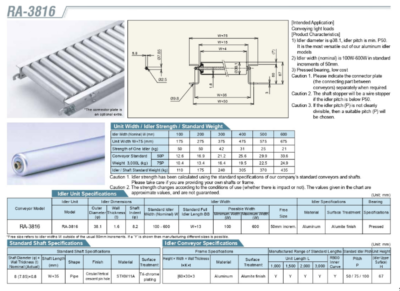

Aluminum Idler Conveyor RA-3816
The gravity conveyor model is conveying light loads
- Idler diameter is φ 38.1, idler pitch is min P50. It is the most versatile out of our aluminum idler models
- Idler width(nominal) is 100W-600W in standard increments of 50mm.
- Pressed bearing, low cost
Description
Shipping & Delivery
SHIPPING & DELIVERY
Our products are sent using a private delivery service for short distances and expeditions for long distances. We also ship worldwide. Please contact us and send us an inquiry for more information.
