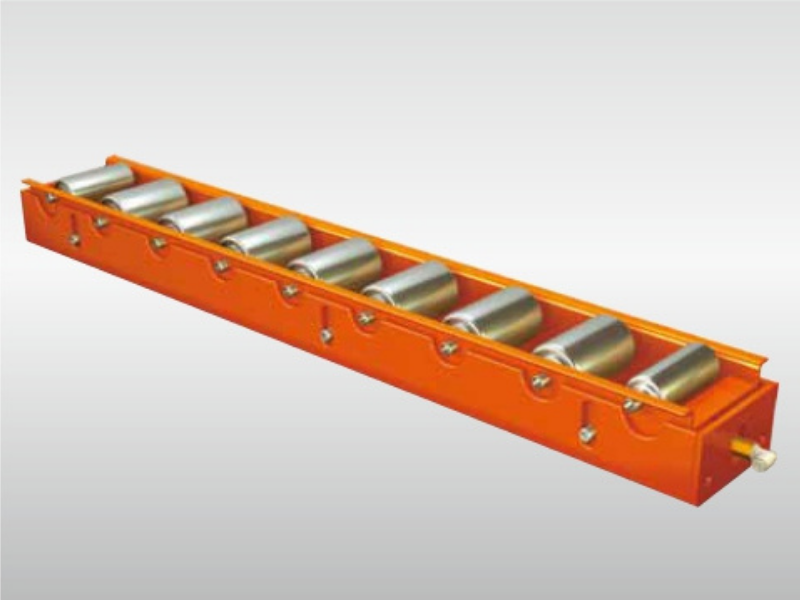

Air Lift With Rollers ALR-PR-57H

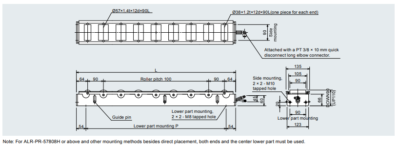

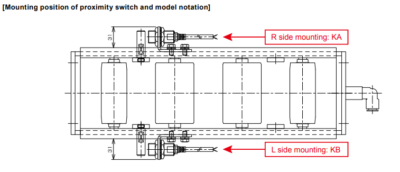

The upper frame Air Lift (Ballon Lifter) attached with rollers moves up and down. It is optimum for direction changing machines in a free roller line. The machine height is low (90 mm), and the air lift can be attached just by removing one roller from the existing roller conveyor (Ø 57 × 100 P) (crossing interval of carried items: 200 mm). A proximity switch can be attached.
- Stroke: 20 mm
- For heavy loads
