A steel conveyor is a material handling system designed for transporting products, packages, or bulk material using a steel belt. It consists of a flat steel belt that is driven by a electric motor and supported by steel idler rollers across stainless steel slider bed or steel channel frame. Steel conveyors often use precision steel rollers or vulcanized rubber rollers along with self-aligning bearings sealed against contamination. Pulleys have deep treads for excellent belt traction. Conveyor parts like stands, supports and guards are constructed from painted steel.

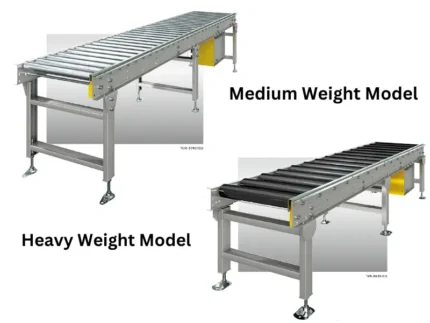

Steel Chain Driven Roller Conveyor KR
Bestseller of the KR series proven by records and reliability! Wide variation of roller outer diameters from 38 mm to 60 mm and KR series also has model for heavy weight that stably carries heavy things. Conveyor with records and reliability.
- Steel
- Chain transmission
- Medium/Heavy weight model
- Standard series

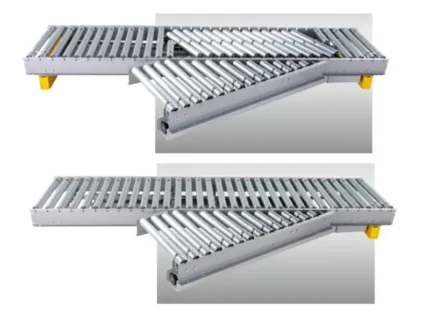

Steel In-chain Driven Tapered Roller Conveyor KTR-S
Inner drive type curved conveyor. It can be arranged at the same machine width as KR-574010S etc.
- Steel
- Chain transmission
- Medium weight model
- Standard series
Steel Out-chain Driven Tapered Roller Conveyor KTR-SW
Outer drive type curved conveyor. Various curve R sizes are available. A model with suitable specifications can be selected.
- Steel
- Chain transmission
- Medium weight model
- Standard series
Steel Chain Driven Accumulation Roller Conveyor MAC-CS/G
The MAC accumulation roller conveyor always gives optimum driving force to carried items by adjusting the spring force. The MAC-CS model, which adjusts the driving force for every several rollers , and the MAC-CN model, which adjusts the driving force for each roller, can be selected depending on the applications and use conditions. And the MAC-G model is chain driven accumulation roller conveyor for middle weight things that uses #50 single chain.
- Steel
- Chain transmission
- Medium weight model
- Standard series
Steel Chain Driven Accumulation Roller Conveyor MAC-H
Reliable MAC-H model for ultra-heavy loads that uses 150-frame and #60 single chain. Accumulation conveyor for heavy loads with maximum transport weight of 700 kg/m.
- Steel
- Chain transmission
- Heavy weight model
- Standard series
Steel Driver Roller Conveyor M MMC-DR
Performs quiet and smooth conveyance compared with the chain drive system even in the case of high speed conveyance by the drive shaft drive system.
- Steel
- Belt transmission
- Medium weight model
- 90-frame series
- Simple Accumulation
Steel Driver Roller Conveyor M MMC-TC
Performs quiet and smooth conveyance compared with the chain drive system even in the case of high speed conveyance by the drive shaft drive system.
- Steel
- Belt transmission
- Medium weight model
- 90-frame series
- Simple Accumulation
Steel Component System Conveyor MJ
Steel Component System Conveyors have MJB Branching unit models and MJG Merging unit models .
- Steel
- Belt transmission
- Medium weight model
- Simple Accumulation
Steel Flat Belt Driven Roller Conveyor FLY-E
Low-noise conveyor that drives rollers by bringing the flat belt below the rollers in contact with the rollers.
- Steel
- Belt transmission
- Medium weight model

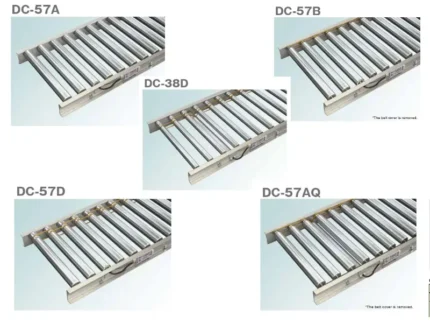

DC Systematic Steel Roller Conveyor (DC Motor Rollers) SST-DC
The DC systematic steel roller conveyor (DC motor rollers) has DC-57A model, DC-57B model, DC-38D model, DC-57D model, and DC-57AQ model. DC motor rollers with high input and output efficiency that gives about 300% torque compared with the AC motor of the same size and can change the speed in 32 stages at maximum by the internal volume setting inside the driver.
- Steel
- Motor roller transmission
- Medium weight model
- [90-frame series

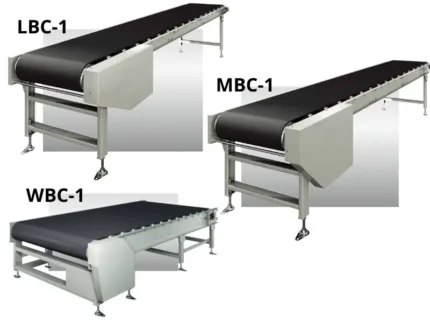

Steel Rubber Belt Conveyor LBC/MBC/WBC
The steel belt conveyor LBC model optimum for carrying things with an unstable shape, the belt conveyor utilizes a rubber belt with thickness and excellent elasticity. And the steel belt conveyor MBC model is advanced medium weight model belt conveyor with excellent performance of the LBC such as its simple structure and unitized parts. And The steel belt conveyor WBC model has in addition to a belt width of 700, 800, to 1400 variations are now available, it is suitable for carrying things and pallets with an unstable shape.
- Steel
- 90/120/250-frame
- Head drive
- Medium weight model and Heavy weight model (only WBC model)
- Macchikon/Emukon/Dabukon
Steel Basic Chain Conveyor SCC-40A/B
The steel chain conveyor SCC-40A model continously runs and has the simplest structure. High maintainability and durability because of its iron chain rail structure. And the steel chain conveyor SCC-40B model is performs high rigidity as a chain conveyor and has excellent durability because the iron chain rails are replaceable.
- Iron frame
- Iron rails
- Medium weight model
