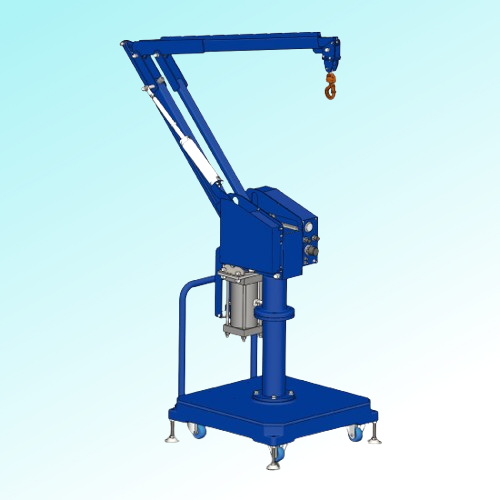

BMG (Low ceiling model)
BMG is designed for efficient material transport in low-ceiling environments. Its compact design and low maximum arm height make it ideal for moving items such as cardboard boxes and bags in constrained spaces, offering both ease of use and reliable performance.
- Optional base types (fixed and mobile) to accomodate various operational needs.
- Maximum load capacity of up to 150 kgs
Description
| Model |
Max.load
[kg (lb)] |
Max.working radius
[mm (in)] |
Up and down stroke
[mm (in)] |
Air consumption |
Approx. Mass
[kg (lb)] |
Outline drawing
[PDF] |
|
|---|---|---|---|---|---|---|---|
| Nℓ/min |
Cycle time
[sec] |
||||||
| BMG-30W | 30 (66.2) | R1905 (R75.0) | 1600 (63.0) | 48 | 10 | 100 (220.5) |
Floor mount model
Floor mobile model |
| BMG-38S | 38 (83.8) | R2375 (R93.5) | 2000 (78.7) | 75 | 10 | 100 (220.5) |
Floor mount model
Floor mobile model |
| BMG-38W | 38 (83.8) | R2375 (R93.5) | 2000 (78.7) | 75 | 10 | 140 (308.7) |
Floor mount model
Floor mobile model |
| BMG-50W | 50 (110.3) | R1905 (R75.0) | 1600 (63.0) | 75 | 10 | 135 (297.7) |
Floor mount model
Floor mobile model |
| BMG-75W | 75 (165.4) | R2220 (R87.4) | 1600 (63.0) | 122 | 10 | 220 (485.1) |
Floor mount model
Floor mobile model |
| BMG-150W | 150 (330.8) | R2220 (R87.4) | 1600 (63.0) | 191 | 10 | 290 (639.5) |
Floor mount model
Floor mobile model |
